Recknagel Picatinny Rail for SAKO Rifles

Recknagel Picatinny Rail for SAKO Rifles.

Made to fit the tapered dovetail bases on all of the SAKO models including the 75/85, "L" and "A" series actions. The rails are sized based on the caliber of the rifle.

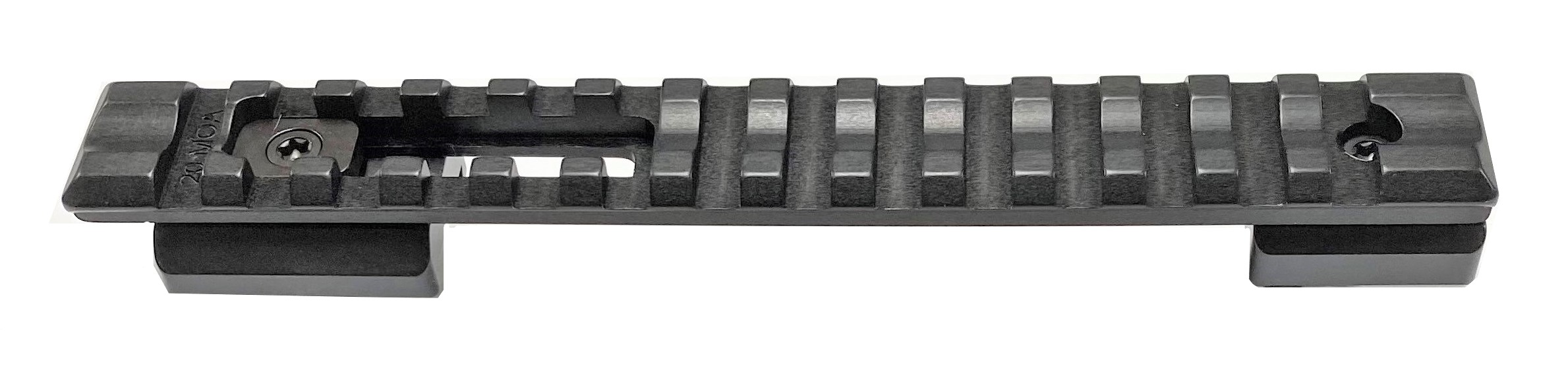

This rail is made of three pieces: Two lower blued steel "sub-base" units fit onto the tapered SAKO bases. Each sub-base has two lock screws that bear against the top of the action to secure the unit so NO drilling and tapping is required. The aluminum alloy picatinny rail then screws directly to the sub-bases. The front of the rail is slotted to allow for varying sub-base spacings.

These are Mil-Std 1913 rails and available in both Flat (NO Cant) or with a 20MOA Forward Cant. (Select 20MOA for long range shooting applications.)

Select the SAKO action length and cant preference when ordering.

The rails are offered in two sizes.

S (Short) & SM (Short Magnum) actions:

SAKO Action S (Small) .22-250, .243 Win, .308 Win, 6.5 Creedmoor & 7mm-08 & etc.

SAKO Action SM (Short Mag) .270 Win Short Mag & .300 Win Short Mag & etc.

Use R-57050-0014 (FLAT) & R-57050-2014 (20MOA) for these actions / calibers.

M (Medium) & L (Long) actions:

SAKO Action M (Medium) .25-06, 270 Win, .30-06 SPRG & 6.5x55 & etc.

SAKO Action L (Long) .300 Win Mag, 7mm Rem Mag and .375 H&H & etc.

Use R-57050-0114 (FLAT) & R-57050-2114 (20MOA) for these actions / calibers.

Heights: Flat "0" Cant = .492" / 12,5mm.  20MOA Cant = .543" / 13,8mm

Lengths: Rail S & SM -0014 & -2014 = 6.250" and Rail M & L - 0114 & -2114 = 7.00"
