Guard Screws - Mauser 98 - Magnum Length

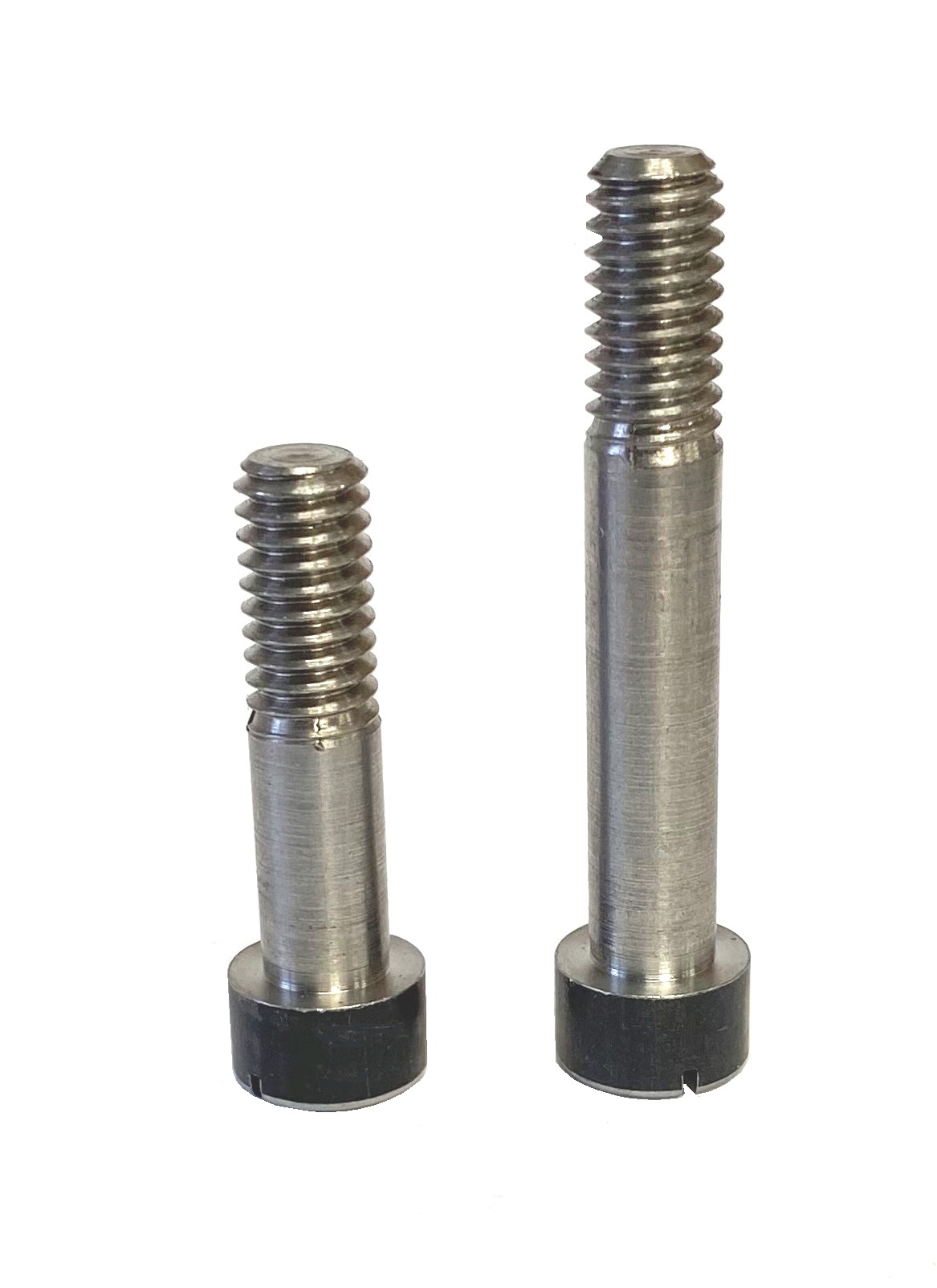

Guard Screws - Mauser 98 - Magnum Length.  All steel original design Magnum Mauser 98 non-locking guard screws.

1/4-22 thread. Head Diameter: 9,98mm / .393". Head Depth: 5,97mm / .235" with thin 0.75mm / .030" slot width.

Front Guard Screw: OAL:32mm / 1.26" long (Body length 26mm / 1.024")

Rear Guard Screw: OAL 45mm / 1.77" long (Body length 39mm / 1.54").

Sold as a two (2) screw set. Delivered "in the white" for fitting, timing, and finishing. Gunsmithing required.
